Beam 4 Person Hot Tub

$ $ $ $ $

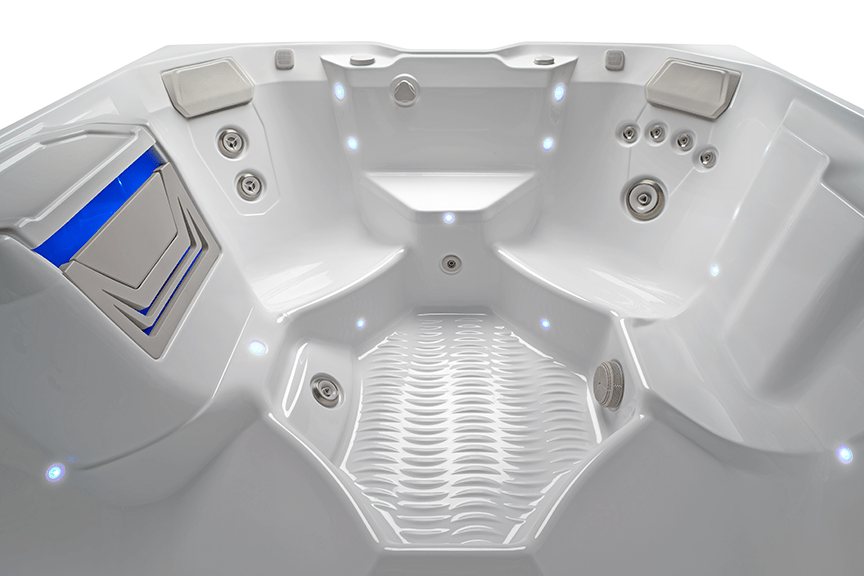

The small footprint Beam 4 Person Hot Tub offers the new FreshWater Salt System that can keep water clean and sanitized for up to a year. Soothing Style and Space. Ideal for tighter spaces, the Beam 4 Person Hot Tub has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior. Illuminated by the Raio® LED multi-color lighting system, the Beam model lets you choose the color to match your mood while enjoying 19 tension-relieving jets.

With elegant styling, exceptional performance, and quality you can count on, your Limelight Collection spa will quickly become a central hub of your home.

Beam 4 Person Hot Tub

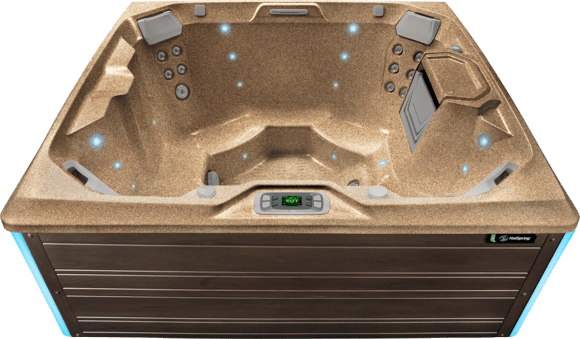

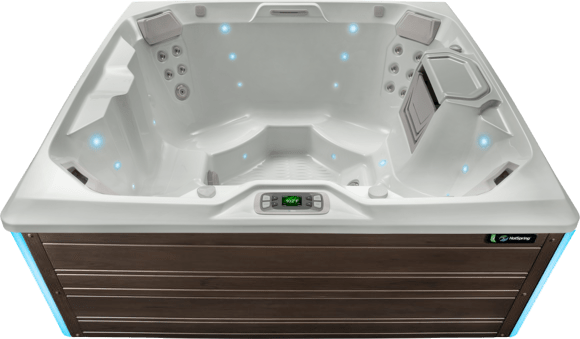

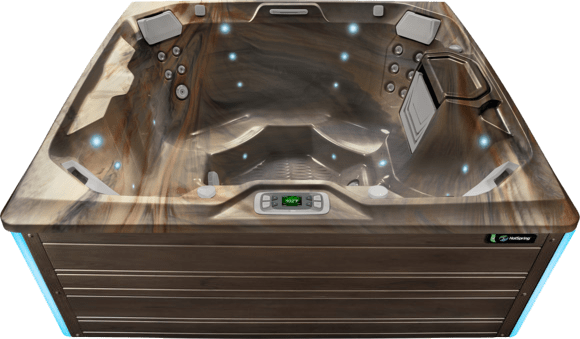

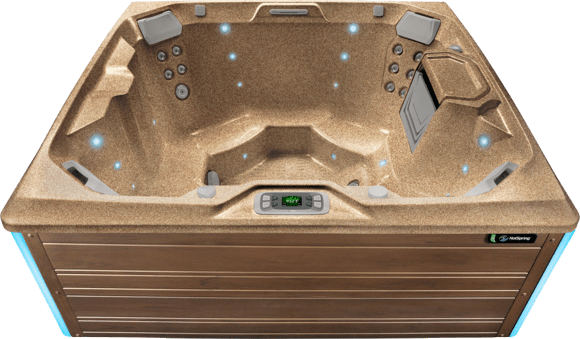

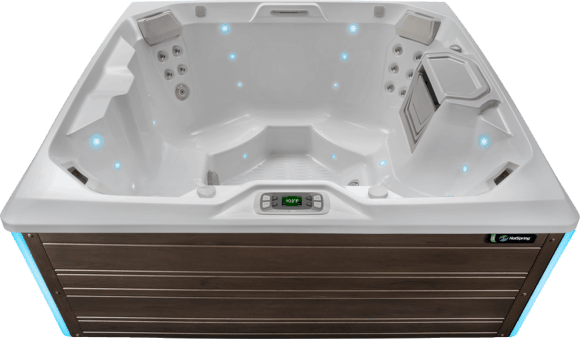

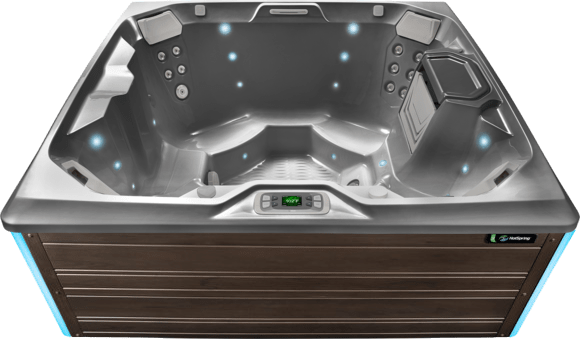

Cabinet Colors: Coastal Gray, Espresso, Sable

Shell Colors: Alpine White, Desert, Ice Gray, Platinum, Tuscan Sun

Seating Capacity:

4 Adults


6’8″ x 6’8″ x 33”

Water Capacity:

310 gallons


700 lbs. dry – 3,820 lbs. filled (water + 4 adults)

Jet Count:


Hot Tub Jets:

1 XL Directional jet

2 Standard Single Rotary jets

2 Standard Directional jets

14 Directional Precision jets

Lighting System:

Raio® multi-color points of light (30)

Exterior multi-color lighting with timer

Water Features:

Vidro® backlit ribbon waterfall

Control System:

IQ 2020® with LCD control panel

230w/50amp, 60Hz

Includes G.F.C.I protected sub-panel


115v/20amp, 60Hz

Includes G.F.C.I. protected power cord


No-Fault®, 6000w/230v or 1,500w/115v

Jet Pump:

Wavemaster® 9000 One-speed

2.5 HP, continuous duty

5.2 HP, breakdown torque


Wavemaster® 7000 One-speed

1.65 HP, continuous dity

3.5 HP, breakdown duty

Circulation Pump:

SilentFlo 5000® for quiet continuous filtration

Water Care System (Optional):

FreshWater Salt System

Effective Filtration Area:

100 sq. ft. top loading filters

Vinyl Cover:

3.5″ to 2.5″ tapered

2 lb. density foam core

Hinge seal

Vinyl Cover Colors:

Chestnut, Caramel, Slate

Entertainment System (Optional):

Wireless Entertainment

Cover Lifters (Optional):

CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®

Steps (Optional):

Everwood®, Polymer

Hot Spring Limelight Models:

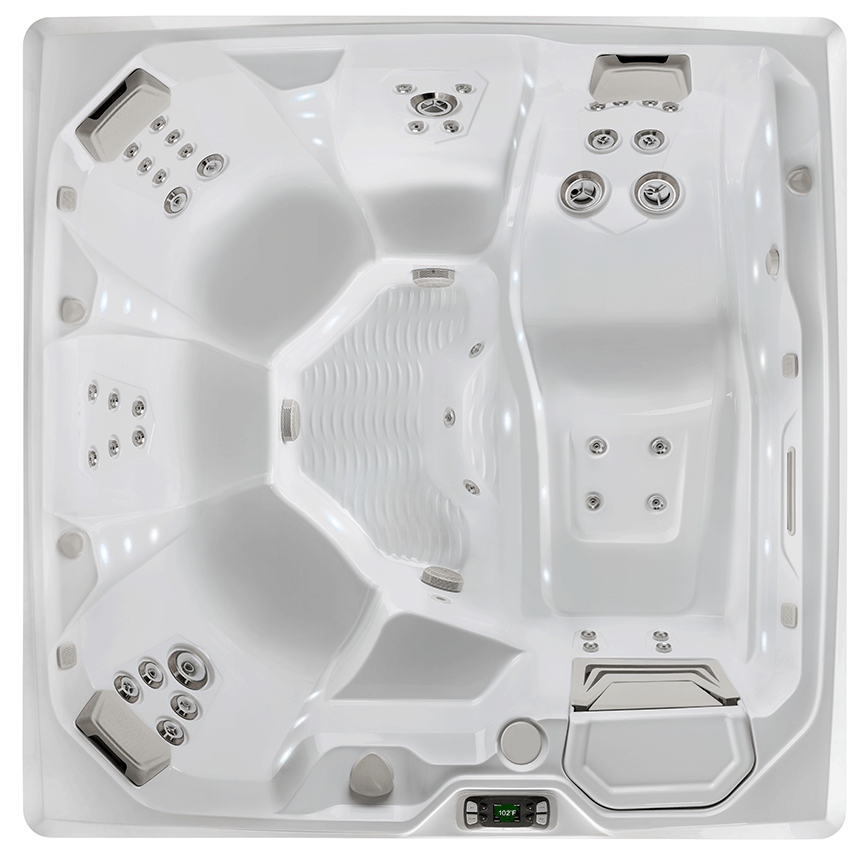

Flair 6 Person Hot Tub
