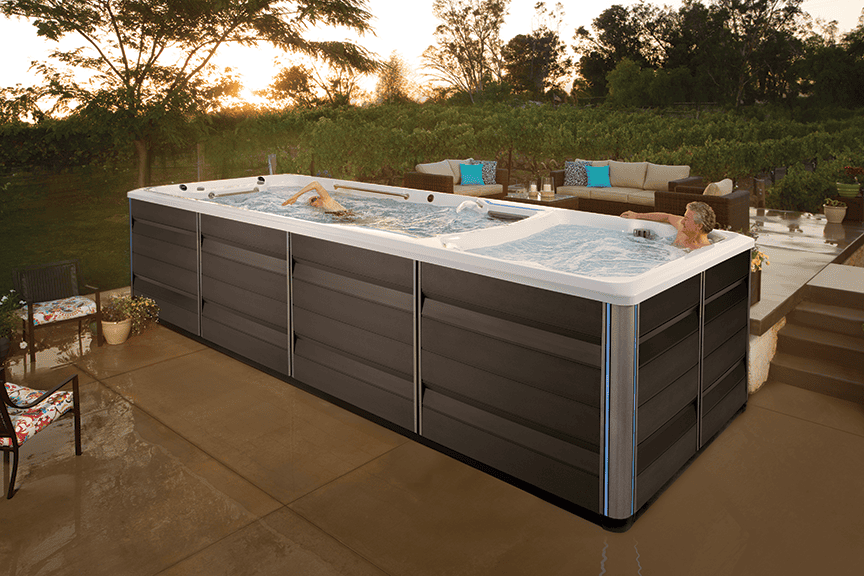

SwimCross Exercise Systems X2000

Fitness Spa Meets Hot Tub

Enhance your together time with more opportunities for fitness and fun. With the 20-foot Endless Pools X2000 SwimCross Exercise System, dual-temperature jetted swim spa, there’s room for all to exercise, play, swim, and relax—all from the comfort of home. Make it your go-to destination for wellness opportunities and fun.

Inside the SwimCross® Exercise Systems X2000 from Endless Pools®, two distinct areas provide two separate aquatic atmospheres. The 15′ exercise area provides plenty of space for the whole family to have fun and get active. Then, the separate spa area invites you to take a seat in a sculpted hydromassage chair as the jets pamper your post-workout muscles. Each area features independent temperature controls, so you can unwind at a luxurious 104 degrees while others swim freely and comfortably at 85 degrees.

Not only does your SwimCross® Exercise Systems X2000 achieve the right temperature at the right time, it also provides a current that flexes to you. The X2000 features four airless jets, including three round jets for resistance and an oblong River Jet below those to provide lift. The unique jet configuration produces smooth, highly variable resistance for all levels of swimming and exercise.


20′ L x 58″ H x 89″ W

Swim Side: 15′ L x 58″ H x 89″ W
Spa Side: 5′ L x 38″ H x 89″ W

Water Capacity:

2,350 Gallons

Swim Side: 2000 gallons
Spa Side: 350 gallons

  • 4,090 lbs Dry | 25,815 lbs Filled*

*Includes water and 10 adults weighing 175lbs each.

Swim Technology:

3 Round Swim Jets

1 River Jet

Swim Jet Pumps:

2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – (2) Single Speed

Shell Color Options:
  • Alpine White
  • Ice Gray
Cabinet Color Options:
  • Mocha
  • Gray
Lighting System:

Swim Side: 14 Multi-Color LED Points of Light
Spa Side: 12 Multi-Color LED Points of Light

Exterior LED Lighting (optional)


14-Gauge Galvanized Steel Frame

Base Pan:

Thermoformed ABS Base Pan


Swim Side: 4000w/230V
Spa Side: 4000w/230V

Hydromassage Seats:

Swim Side: Bench Seat
Spa Side: 4 Hydrotherapy Seats + Cool Down Seat

Hydromassage Jets - 36:

Spa Side:

  • 2 Large Jet
  • 2 Rotary Jets
  • 6 Directional Jets
  • 26 Mini Jets
Hydromassage Jet Pump:

Spa Side:

  • 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – (2) Single Speed Pumps
Control System:

Swim Side: LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel
Spa Side: LCD Control Panel

Water Feature:

Swim Side: 2 Illuminated Waterfalls
Spa Side: 1 Illuminated Waterfall

Water Management System:

Swim Side: UVC + CD Ozone
Spa Side: CD Ozone

Effective Filtration Area:

Swim Side: 200 square feet (4 x 50ft)
Spa Side: 50 square feet

Energy Efficiency:

Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law

Stainless Steel Grab Rails:

Swim Side: 3 Satin Stainless Steel Rails

Music Option:

8 Speakers + Subwoofer, Bluetooth® Enabled

Exercise Equipment Options:
  • Floor Mirror
  • Aqua Bike
  • Resistance Bands
  • Swim Tether
  • Rowing Kit
Convenience Accessories:
  • Signature Steps
  • Bluetooth
  • SwimDeck
  • Coolzone
Vinyl Cover & Lifter Options:

Endless Pools® Bi-Fold Covers & Lifters

Endless Pools SwimCross Exercise System Models:
